M6 Block Jumbo MK3 Mould MK3 Mould
Jumbo MK3 MouldSKU: JJJBBM

M6 Block Jumbo MK3 Mould MK3 Mould

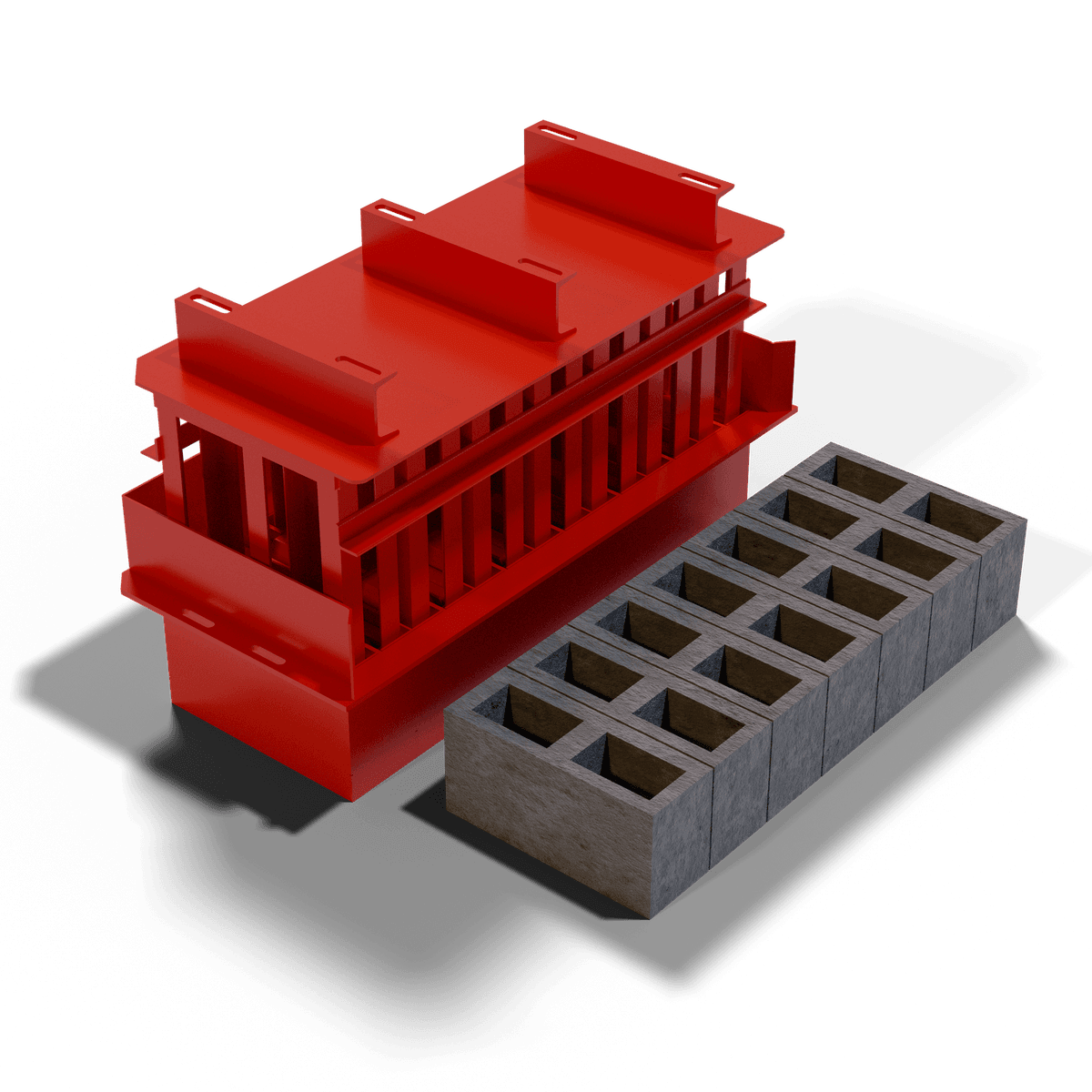

The JJJBBM is a heavy-duty interchangeable mould unit designed for the Doubell Jumbo MK3 brick making machine. It produces M6 Block bricks with industrial-grade efficiency and consistency.

Get More Assistance With This Product
Loading 3D Model...
Cavity Block

M6 Block

Model: BBM

M6 Block (Metric 6 inch equivalent). Standard 140mm width block used for structural walls.

Dimensions

  • L: 390 mm
  • W: 140 mm
  • H: 190 mm

Family

BBM

Compatible Machine

Doubell Jumbo MK3 Manual "egg-layer" Brick Machine (Mould not included)
MK3 Range

Doubell Jumbo MK3 Manual "egg-layer" Brick Machine (Mould not included)

Doubell Jumbo MK3 Manual "egg-layer" Brick Machine (Mould not included)

View Base Machine

Cost Calculator

Est. Volume
0.00688 m³
Est. Mass
13.75 kg
Cost Per Brick (ZAR)
5.93
Cement: ZAR 3.03
Sand: ZAR 2.15
Stone: ZAR 0.59
Labor: ZAR 0.17

Production Forecasting

DIY Hand Mould

DIYBBM
500
(1 min cycles @ 100% efficiency)
1
500
Bricks / Day

Jumbo MK2

JJM + JJBBM
500
(1 min cycles @ 100% efficiency)
3
1500
Bricks / Day

Jumbo MK3

JJJM + JJJBBM
500
(1 min cycles @ 100% efficiency)
7
3500
Bricks / Day
