M9 Block Jumbo MK3 Mould MK3 Mould
Jumbo MK3 MouldSKU: JJJBAM

M9 Block Jumbo MK3 Mould MK3 Mould

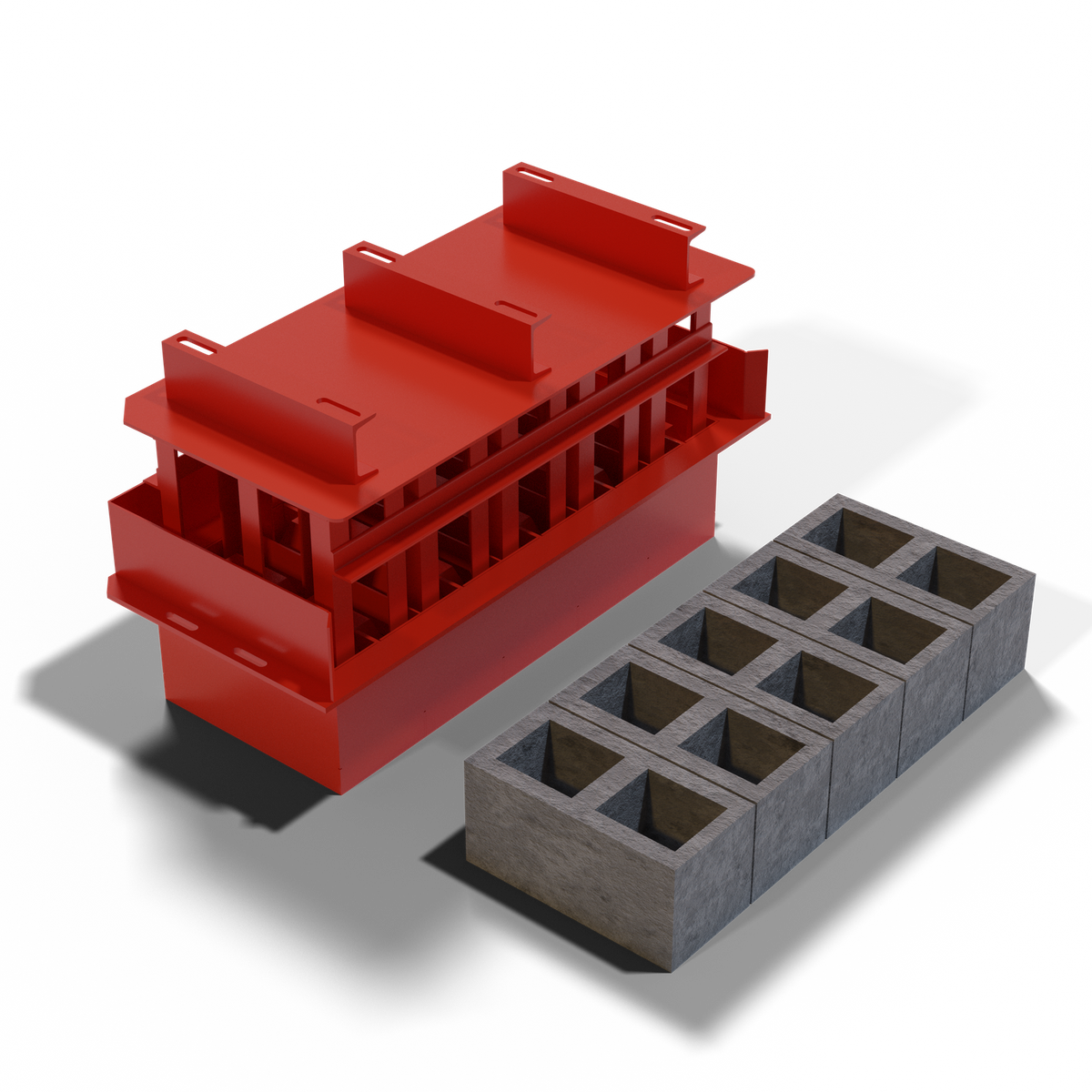

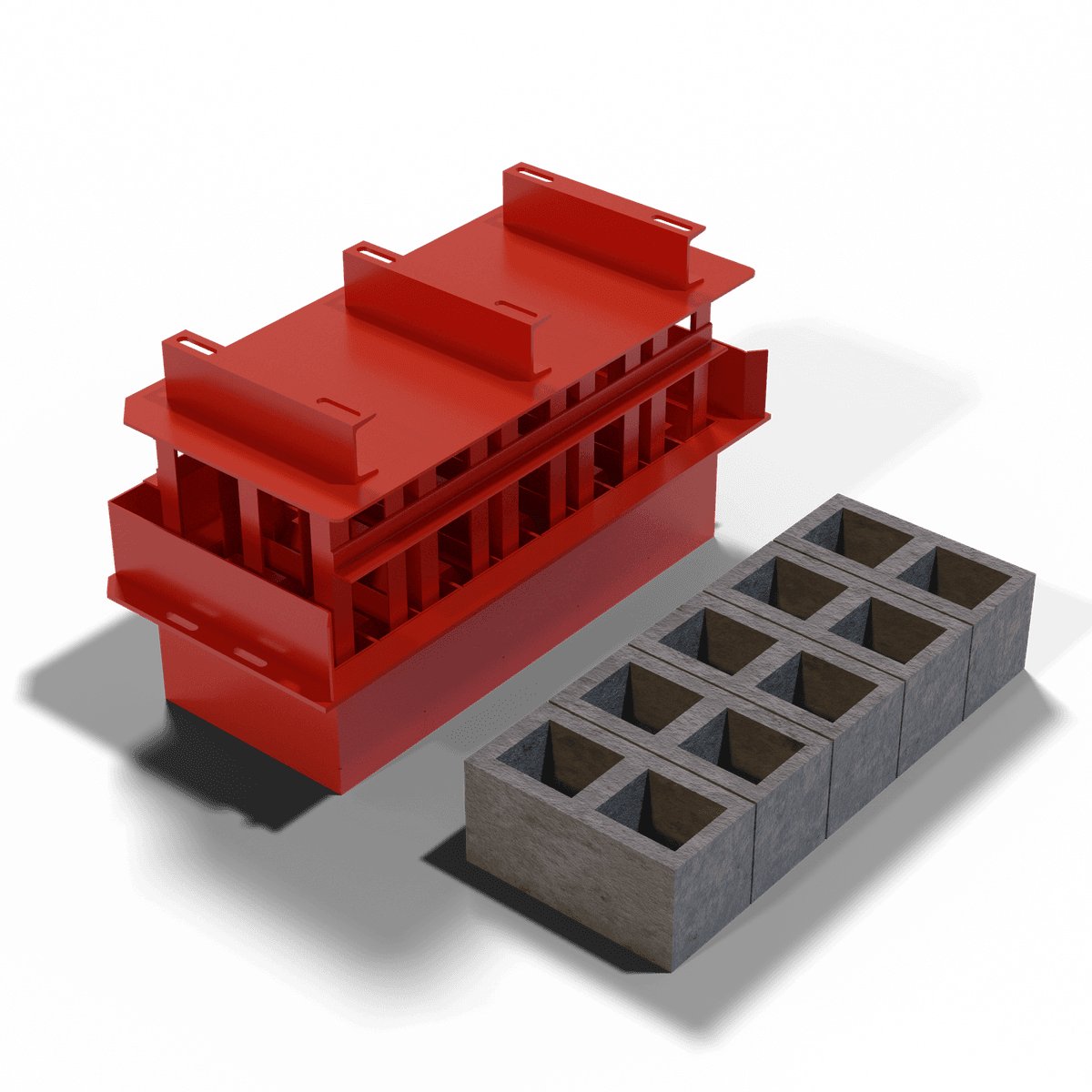

The JJJBAM is a heavy-duty interchangeable mould unit designed for the Doubell Jumbo MK3 brick making machine. It produces M9 Block bricks with industrial-grade efficiency and consistency.

Get More Assistance With This Product
Loading 3D Model...
Cavity Block

M9 Block

Model: BAM

Standard M9 Hollow Block. 190mm width. Used for heavy structural walls.

Dimensions

  • L: 390 mm
  • W: 190 mm
  • H: 190 mm

Family

BAM

Compatible Machine

Doubell Jumbo MK3 Manual "egg-layer" Brick Machine (Mould not included)
MK3 Range

Doubell Jumbo MK3 Manual "egg-layer" Brick Machine (Mould not included)

Doubell Jumbo MK3 Manual "egg-layer" Brick Machine (Mould not included)

View Base Machine

Cost Calculator

Est. Volume
0.00897 m³
Est. Mass
17.94 kg
Cost Per Brick (ZAR)
7.77
Cement: ZAR 3.95
Sand: ZAR 2.81
Stone: ZAR 0.77
Labor: ZAR 0.25

Production Forecasting

DIY Hand Mould

DIYBAM
500
(1 min cycles @ 100% efficiency)
1
500
Bricks / Day

Jumbo MK2

JJM + JJBAM
500
(1 min cycles @ 100% efficiency)
2
1000
Bricks / Day

Jumbo MK3

JJJM + JJJBAM
500
(1 min cycles @ 100% efficiency)
5
2500
Bricks / Day
